Specifications:

• Connector A: RJ45 Male
• Connector B: RJ45 Male
• Housing Material: Polycarbonate
• Connector Plating: Nickel
• Pin Construction: Brass
• Pin Plating: Gold plated
• Dimensions: 11x28x6mm
• Length: 5m
• Colour: Black
• Type: Cat.6A
• Jacket Diameter: 6.6×1.76mm
• Jacket Material: PVC
• Conductor Material: Bare Copper
• Conductor Gauge: 32AWG
• Shielding: Aluminium Foil
• Supported Bandwidth: 500MHz
• Nominal Attenuation: 49.3dB/100m @ 500MHz
• Minimum Bend Radius: 60mm
• Operating Temperature: -10C – 60C
• Storage Temperature: -10C – 40C

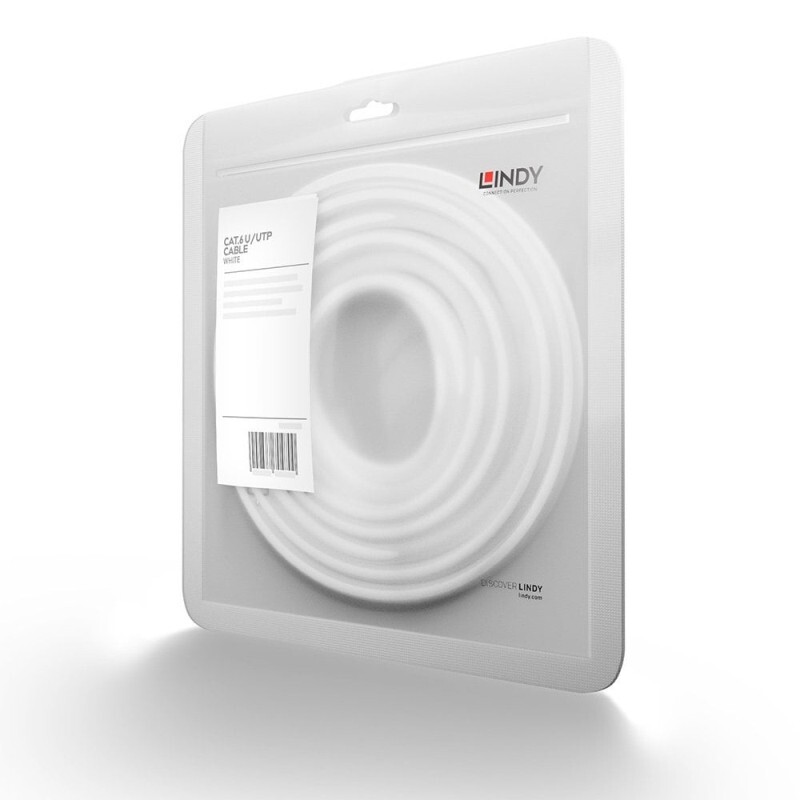

• Packaging Type: Polybag
• Warranty (Years): 10
• Product Compliance: RoHS, REACH, California Proposition 65
• Purchasing Information
• No.: 47484
• EAN: 4002888474849

Features:

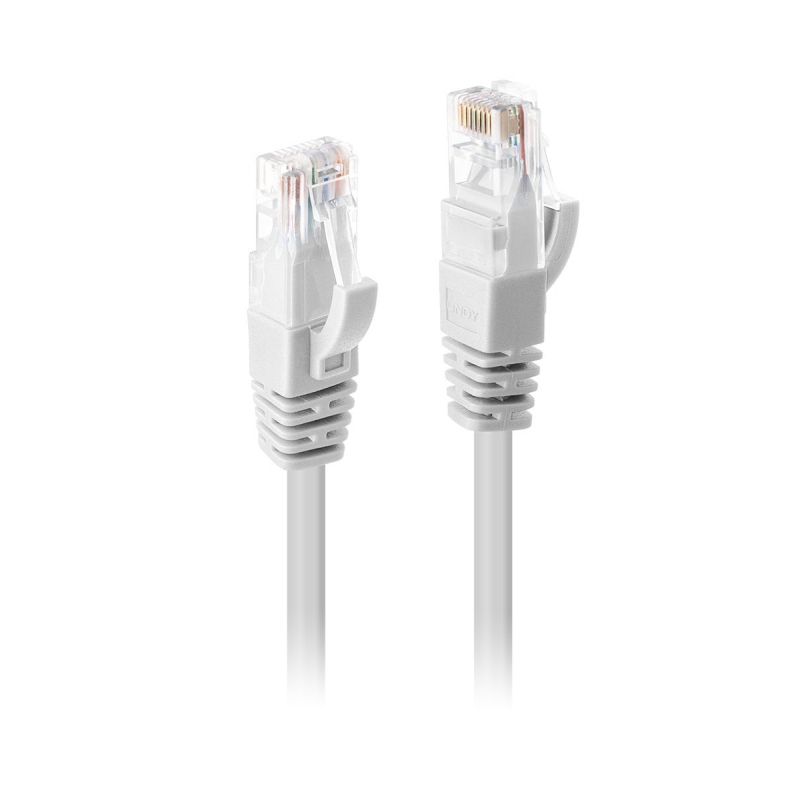

• Twisted Pair Patch Cable with RJ45 connectors
• Connector: Cat.6 U/UTP, PVC
• Integrated snagless connector for latch protection
• Gold-plated pins for better conductivity and elimination of signal loss
• 10-year warranty

Weight	0.0320 kg
Dimensions	L 0.150 x W 0.130 x H 0.030 cm

The Lindy CAT6 RJ45 U/UTP patch leads are manufactured and tested to conform with ISO 11801 specification. The unique snagless strain relief design prevents damage to the connector latch during installation and removal.
